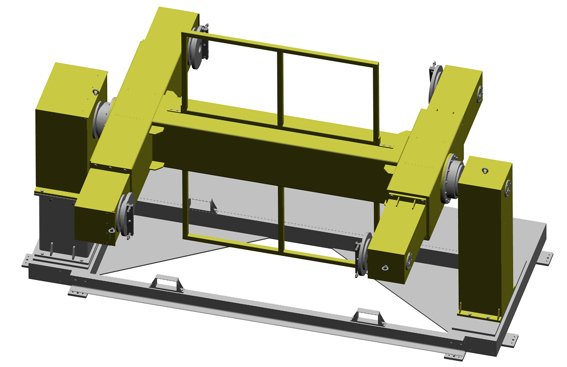

Triple axis vertical overturning postioner

Feature code:



Model

TRS-C500

1st axis

Rated handling capacity(kg)

2000

1st axis

Rated output torque(N.m)

4410

1st axis

Overturning angle(°)

±360

1st axis

Overturning speed(rpm)

8

2nd /3rd axis

Rated handling capacity(kg)

500

2nd/3rd axis

Rated output torque(N.m)

1078

2nd/3rd axis

Overturning angle(°)

±360

2nd/3rd axis

Overturning speed(rpm)

10

2nd/3rd axis

Overturning radius(mm)

500
