LGK-200(PG10-200/PG20-200) LGK-400(PG20-400)

Feature code:

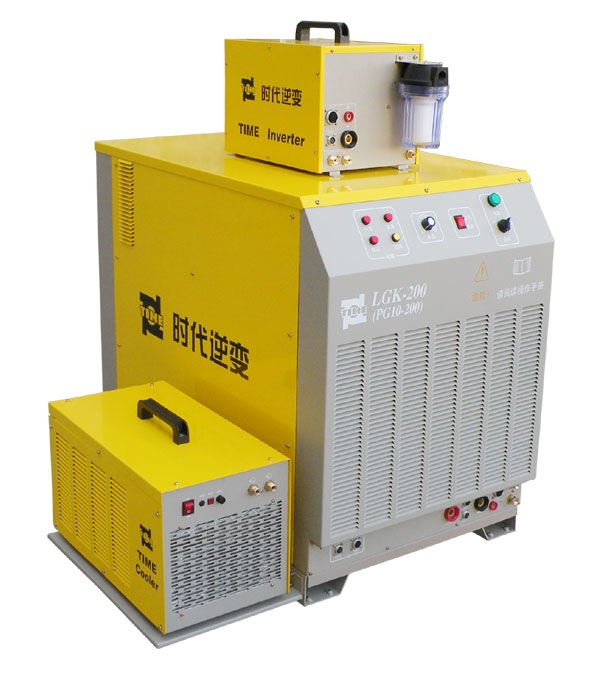

LGK-200(PG10-200/PG20-200)

Main characteristics:

  • Wide range of supply voltage.
  • Continuous adjustment for cutting current.
  • Gas-check and water-cooling.
  • Cutting current can be displayed timely.
  • Water-cooled cutting gun: handheld / used for CNC machine;
  • Applicable for cutting plate

LGK-400(PG20-400)

Main characteristics:

  • Gas Controller uses touch screen,Expert database integrated ;
  • Multi gas control technology to cut the stainless steel without Oxygen so as to save money.



Model

LGK-200

LGK-200

LGK-400

Company Type

PG10-200

PG20-200

PG20-400

input voltage

3 phase 380V±10%

50~60Hz

3 phase 380V±10%

50~60Hz

3 phase 380V±10%

50~60Hz

Rated input power(KW)

37.5

37.5

75

No-load voltage (V)

280

280

280

Current adjustment range(A)

40200

40-200

40-400

Rated output voltage (V)

150

150

150

Rated duty cycle40℃

100%

100%

100%

Efficiency

85%

85%

85%

Power factor

0.93

0.93

0.93

Maximum cutting through thickness  (mm)

64

64

100

Quality cutting thicknessmm

50

50

80

insulation grade

F

F

F

Case Protection Class

IP21

P21

P21

Cooling

Wind

 Wind

Wind

Dimension  (L×W×G)(mm)

1130×670×905

1130×670×905

1130×670×905×2

weight (kg)

480

480

960

Gas flow (L/min)

40200

40200

40200
