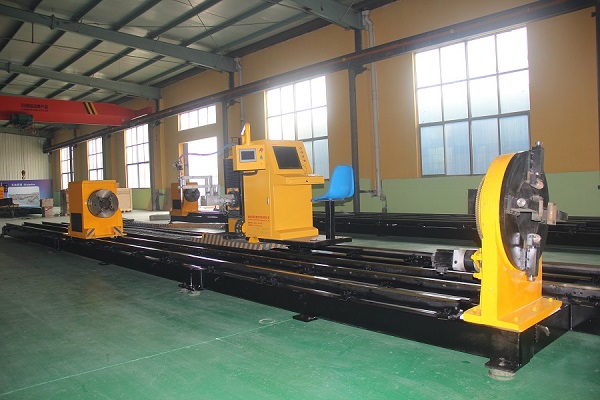

TDC-XF all profiles & pipes CNC Cutting Machine

Feature code:
  • Independent research and development to optimize CNC pipe system with excellent EGES DXF SAT and STL software compatibility.
  • The client can enjoy special cutting process development and life-long technical services free.
  • AC servo drive, transmission adopts to precision planetary gear reducer.

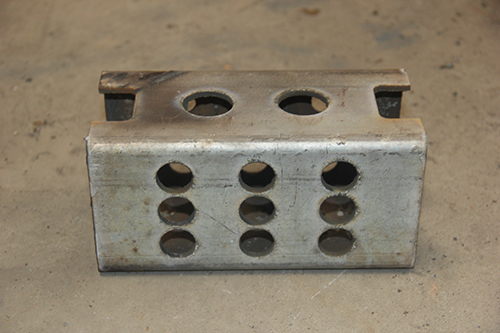

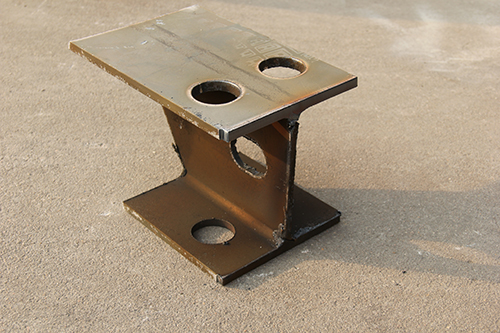

  • AutoCAD space programming system configuratingTIME application plug-ins, can meet the cutting process requirements like rectangular, tapered, polygonal, oval-shaped pipe, and other special fittings.

Model

TDC-XF

Effective cutting length (mm)

6000 (Can be customized)

Dimension(longitudinal track included)  (mm)

7200×1350×2000 (Standard)

Cutting type

Flame or plasma

Cutting thickness (mm)

Flame:6~60mm;   Plasma: 2~14mm (Standard)

Cutting speed(mm/min)

Flame:20~700,    Plasma:500~3500

Control system

Industrial PC

Software

TIME PIPE

Max. piercing cutting thickness of plasma (mm)

14

Max. edge cutting thickness of plasma (mm)

18

Working pressure of compressed gas (MPa)

≥7

Gas flow of plasma (L/h)

4500

Fuel gas

Acetylene / Propane
