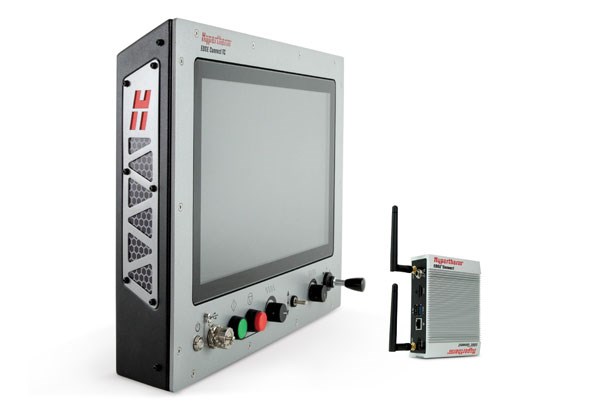

EDGE Connect Hypertherm CNC system

Feature code:
  • Hypertherm’s Phoenix 10 CNC software, Microsoft Window 10 embedded operating system.
  • The operating control panel based on the software and with built-in PLC.
  • Using the patented CutPro Wizard, easy to learn.
  • On-screen software operator’s Console(Soft OpCon).
  • Customs cut charts can be created and controlled in the part program or made available to be CutPro Wizard.
  • Enable on-screen real time monitoring of key process performance parameters while cutting.
  • High-speed digital EtherCAT machine interface and communications with single wire connectivity.
  • One touch access to supporting documentation including cutting optimization tip, consumable change instruction and diagonstic tools in multiple languages.
  • CNC, plasma system and cutting machine diagonsis and repair can be done over the internet.

Model

EDGE Connect

Monitor

19'  touch screen

Processor

Intel Celeron J1900,   Quad core

Memory

4G

Program memory

≥120GB

External interface

USB 2.0、10/100M   network interface

Operating system

Microsoft Windows10®

Power

AC220V±10%

RFI/EMI shielding

Full shielding,grounding

Available axis

2 axes (Standard),5 axes availabe
