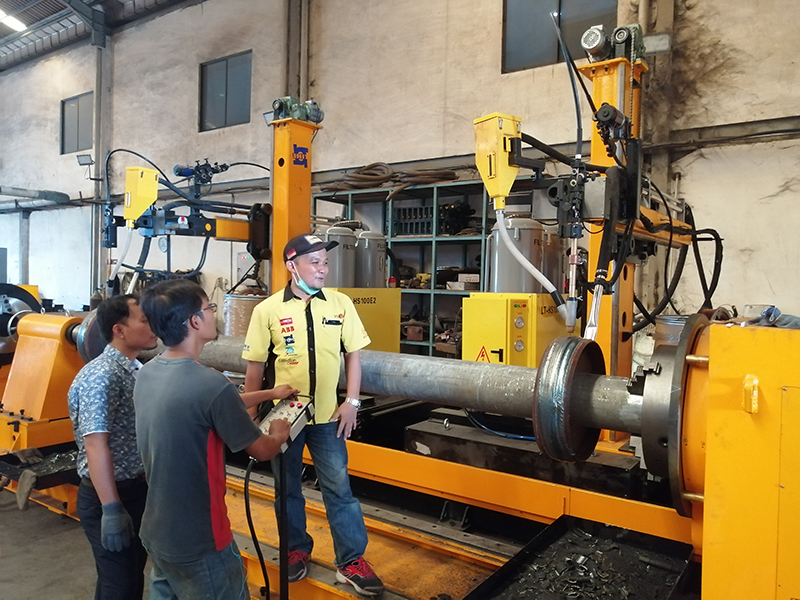

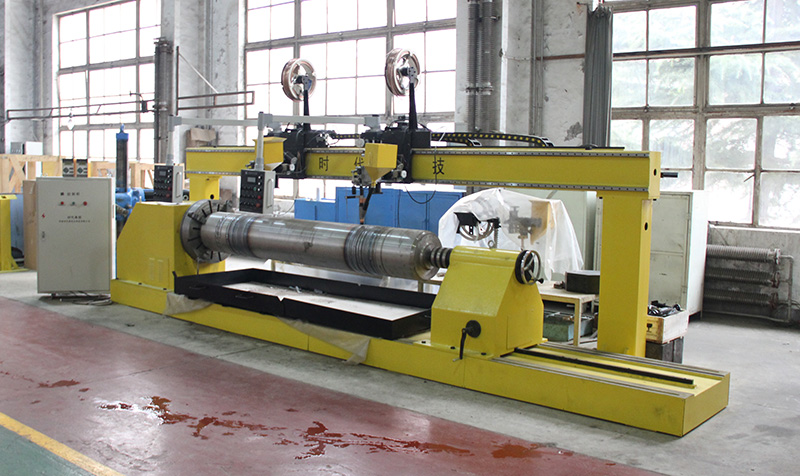

Open arc/submerged arc surfacing equipment

Feature code:
  • Repair for rollers,car rim, grinding roller,and nether millstone etc.
  • Number of torch can be customized.
  • 4-axies digital control system. Friendly human-computer interface.
  • Heavy duty mandril with elastic compensation.
  • Function of spiral / step surfacing, straight / circumferential surfacing.

Workpiece type

Roll / Wheel

Grinding roller

Grinding plate

Length of workpiece (mm)

≤5000 (Can be customized)

--

--

Weight of workpiece (T)

≤15 (Can be customized)

Dia. of workpiece (mm)

1001000

--

≤3500

Configurations

Servo power head + 3D slide table

Manipulatior + Positioner

Manipulatior + Positioner

Cladding mode

FCW or SAW

FCW

FCW

Principle axis rotating speed (r/min)

0.011Servo speed regulation

--

--

Rotating speed of positioner (r/min)

--

0.010.2frequency control

--

Table diameter (mm)

--

20003000

--

Boom travelling speed (mm/min)

--

0.11000Servo speed regulation

--

Wire diameter (mm)

Φ1.6Φ4.0 (Flux wier),      Φ4.0 (Solid wire)

Rated cladding current (A)

63010001250

Duty cycle

100%

Note: The above parameters are for TIME standard product configurations, and can be customized according to the customer’s requirements.
